New designed All Siemens brand parts Vacuum Meat Tumbler

FOB Reference Price:Get Latest Price
$6,480.00 - $9,009.00 / Set | 1 Set/Sets New designed All Siemens brand parts Vacuum Meat Tumbler (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
BOSSIN
Model Number:
GR500
Voltage:
380V or as customers' request
Weight:
440g
Certification:
ce iso
Production Capacity:
200-300kg/time
Dimension(L*W*H):
1580x1115x1530
Power(W):
0.85/1.5
Name:
New designed All Siemens brand parts Vacuum Meat Tumbler
MATERIAL:
SUS304 stainless steel
vacuum pump power:
0.55kw
double speed:
6/12rpm
if PLC control:
Frequency , 4-12rpm can be adjustable
use for:
chicken ,meat , ect marinating
if single speed:
8rpm
volume:
500L
MOTOR POWER:
0.85/1.5(1.1)
Application:
vacuum meat tumbling machine,vacuum meat tumbler
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Supply Ability
Supply Ability:
5 Set/Sets per Month New designed All Siemens brand parts Vacuum Meat Tumbler
Packaging & Delivery
Packaging Details
New designed All Siemens brand parts Vacuum Meat Tumbler packing:Fumigation free wooden box
Port
xingang or qingdao
Lead Time :
15-30days
Product Description
New shipment Bossin brand Vacuum Meat Tumbler





Picture of New shipment Bossin brand Vacuum Meat Tumbler




Keywords:  vacuum tumbler MARINATOR

           Vacuum massage machine

            Meat machine

            Meat marinating machine



Product description:

Vacuum meat tumbler Machine can provide a physical processing of meat energy transformation, an indispensable technology of meat processing, and is assort of available approach to accelerate souse speed, proceed mechanical treatment to diced meat through rolling and kneading, increase the abstraction of salt soluble albuminoidal, improve the rate of manufacture and product quality.

--Propeller is designed distinctively, positive rotation for rolling, kneading and knocking, inversion for massaging/
--Control positive rotations, inversion, intermission, charge, rotation rate, vacuum and atmospheric pressure according to customer’s

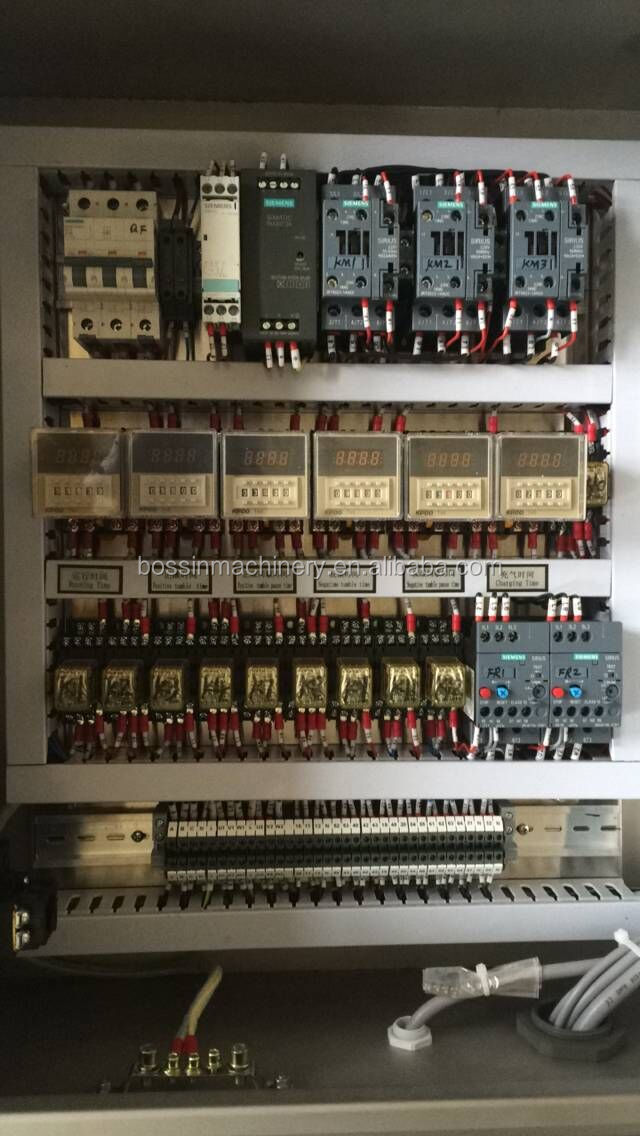

requirement and could realize independent assortment. Adopt PLC, soft startups; touch screen control that can store 100 formulations.
--Vacuum intake. Meat output in inverse rotation. Breathing-style process designed to make sure rolling and kneading under both vacuum
and regular state to shorten processing time. Bigger intake hole can put in powder or other additives easily.

-- have two kinds, one is buttons operation; the other is PLC controlled with touch screen.

You can set the parameters, the vacuum time, speed, positive and reserve rotation times, total time can be set on the touch screen.

-- GRHT250 model Vacuum Tumbler marinator  can be turnover for the drum; the drum also can be taken out with wheel.



Mode

External Dimension

mm

Volume

L

Capacity

kg

Power kw

Vacuum

mpa

Rotation Speed rpm

Weight

kg

motor

Vacuum Pump

Double speed

Single

Regulating speed

GR20

945×515×800

20

10

0.37

0.25

-0.09

9

1.8-9

130

GR50

1300×860×940

50

20

0.45/0.75(0.55)

0.55

6/12

8

4-12

200

GR100

1370×860×940

100

20-50

0.45/0.75(0.55)

250

GR200

1300×915×1265

200

50-100

0.45/0.75(0.55)

285

GR500

1580×1115×1530

500

200-300

0.85/1.5(1.1)

1.1

440

GR1000

2190×1300×1720

1000

400-600

1.5/2.4(1.5)

1.1

6/12

6

730

GR1600

2225×1500×1940

1600

800-1000

2.2/3.3(3)

2.2

6/12

12

4-12

1242

GR2500

2695×1745×2130

2500

1200-1400

5.5

4

 /

3-12

1598

GR3500

2750×1945×2300

3500

1600-1800

7.5

 /

3-12

1794

GRHT250

1560*980*1650

250

50-150

0.75

0.55



/

1.6-8

300








Our Services

1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides,
train your workers for the correct usage and daily maintenance.

2. Any spare parts you need will be sent to you directly from us.

3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sent
to your working site if you can not solve it under our guidance.

Welcome to contact us and we are at your service 24 hours.
call me 0086-15830671682
skype: hellosunny168

Advantages

ALL ARE BASED ON ISO QUALITY MANAGEMENT SYSTEM AND WITH CE MARK

1dd059399c7ab1365abc41a55c85105422416469



1.European technology ,adopt SUS304/316 stainless steel in compliance with HACCP standard, easy to be cleaned up.

2.PLC control ,CAD programmed control ,seting the data as different products.

3.Wholly welded machine body stable and low noises.

4.Adopted international advanced technology. Be changeable with imported cutters.

5.Auto protection design to make sure safe operation.

6.Little meat temperature change , benefit to preserve freshness.

7.Adopt good quality stainless steel ,knives are made of imported material,and imported knives can be another option . for the sasuaeg stuffer, our parts can exchangable with HAMDTMANN ,VEMAG etc brand. our GC6200 is toatally same with VF620 handtmann brand. the meat pump parts are the same with handtmann.

8.Key parts produced by advanced machine processing center(CNC lathe machine), ensure the precision of process.

9.Application include the processing of meat and also the processing of cheese ,vegetable , fruits, sweets and products of the chemical industry.

10.Parts:is built with INNOVANCE,EMERSON servo motor drive as drive system ,Mitsubish, BECHHOFF and ABB water-proof button etc imported famous brand.



Company Information

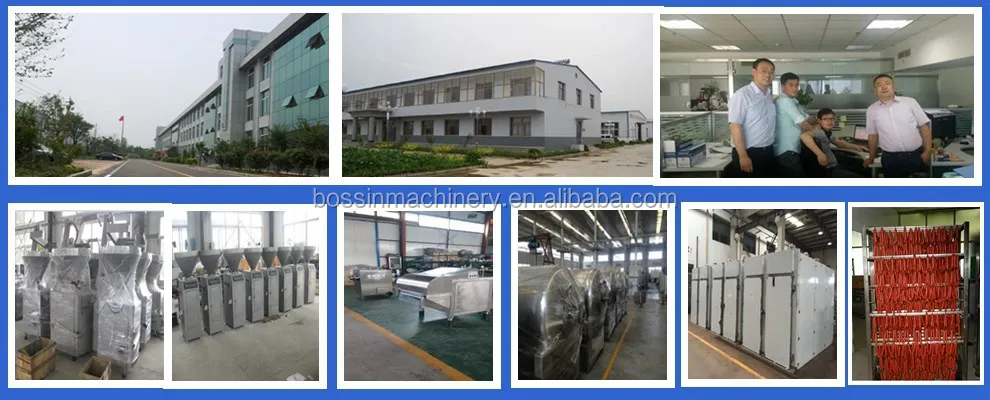

My factory is mainly manufacturing the Meat processing machinery, including all kinds of frozen meat flaker, meat mincer, meat mixer,meat bowl cutter,brine injector, vacuum meat tumbler, sausage stuffer/filler, sausage clipper, smokehouse, sausage cutter and Multi forming and coating machine in application of all kinds of fast food (hamburger, chicken nuggets, fish finger, onion ring etc.),also pasta machines. All of machines are based CE and ISO 9001 standard system. The products have been sold to overseas market such as Southeast Asia, Europe, Middle East and South America and we will go on to develop more markets through many ways. Our factory has abundant manufacturing and export experiences, so we will offer excellent quality of products and best service for all our clients sincerely.



9898989898

333333333_

DSCN1068


QQ20150606112155QQ20150606112210

Certifications



HTB1vTSaIFXXXXbFXXXX760XFXXXF



FAQ



1. Are you manufacturer?
Yes, we are professional manufacturer of meat machines with 11 years’ experience.



2.What about the product quality?
a) Each machine will be tested more than 24 hours totally.
b) Noise level tested 70~75db.
c)we use good 304 /316 Stainless steel
d) for the engine and electrci parts, we use imported brand.



3.What about the price?
We only offer the reasonable price instead of high price. Different quality and with different price.



4. Can you arrange the installation abroad?
Yes, we already exported to southeast, Germany, and Africa etc. And some of them installed by our technology team.



5. Can you accept special order?
Yes, we have R&D center with years’ experience for meat machine. Welcome to visit us. You will
get the best service and product.
We do believe our company will be best choice among the Chinese meat machinery company.



New shipment Bossin brand Vacuum Meat Tumbler
