High capacity new technology meat grinder machine meat grinder

FOB Reference Price:Get Latest Price
$10,200.00 - $11,500.00 / Set | 1 Set/Sets meat grinder machine meat grinder (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
BOSSIN
Model Number:
JR130
Voltage:
380V
Weight:
750kg
Certification:
ce iso
Production Capacity:
1500kg/h
Dimension(L*W*H):
1230*1270*1260mm
Power(W):
19kw
machine name:
meat grinder machine meat grinder
material:
sus304 stainless steel
hole size range:
3-26mm
hole plate dia.:
130mm
screws:
two screws: feeding and mincing
feature:
Germany technology
safty mark:
safty cover,
Application:
to grind frozen meat
Function:
mincing/ cutting/ grinding meat
Processing:
meat grinding mincing
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Supply Ability
Supply Ability:
5 Unit/Units per Month meat grinder machine meat grinder
Packaging & Delivery
Packaging Details
meat grinder machine meat grinder package: Fumigation free wooden box
Port
xingang or qingdao
Lead Time :
Shipped in 20 days after payment

  High capacity new technology meat grinder machine meat grinder



Pictures of meat grinder machine meat grinder:

frozen meat mincer JR130(zt)04



1.frozen meat mincer manufacturer
2.imported blade material
3.Japan electrical components
4.easy maintenance

5.safty cover , CE Standard  safty cover  when open the machine is stop. this machine is similar Germany Sydemann.

6. simiar quality, our price is cheaper, similar price, our quality is better



Product Description

Adopted German technology. Be changeable with imported cutters. The material is SUS304.
Double feeding screws designed. Each feeding screw can work independently. And each of them has two speeds. According with different meat choose different speed respectively to reach the best cutting effect.
Feeding Screw reasonably designed. Meat can outpour easily. No grease appears. Reduce the press to make meat granules with neat edge. Need not sharpen the cutters.

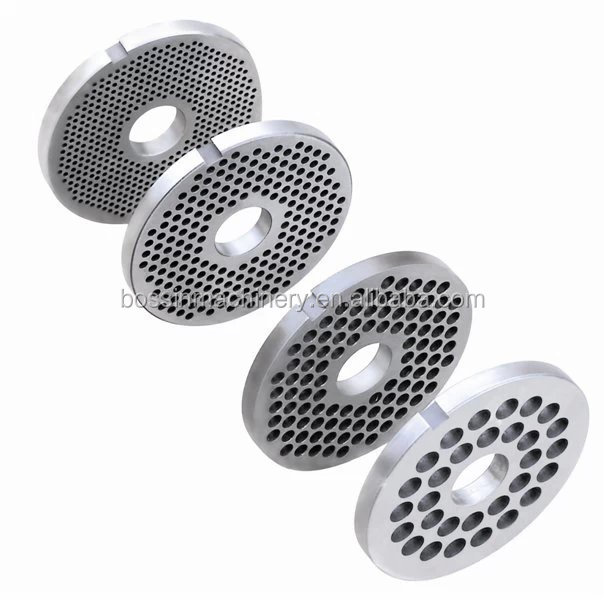

Fast dismantle handle can easily pull out feeding screws. Cutters adopted imported material and have been processed in Vacuum Heating Surface Processing. There are all kind of options of cutters and hole plates.
Auto protection design to make sure safe operation.
It can grind frozen or fresh meat and vegetable. And it has sinew-extracting function.

it can mince the minus 18 degree frozen meat blokers.

mincer knife.jpgmincing screw and partspsu (1).jpg

SJR130-6.JPGfeeding screw partSJR130-7.JPG

safty cover

Specifications:

Product Name

Meat Mincer/Meat Grinder/Double screw Meat Mincer

Item No

JR100

JR120

SJR130

Power

1.5KW

7.5KW

19KW

Capacity

150kg/h

600kg/h

1500kg/h

External Dimension

(L*W*H)

570*400*695mm

950*580*1090mm

1230*1270*1260mm

Weight per ctn

100kg

350kg

750kg

Orifice Plate Size

2mm~8mm

3mm~24mm

3mm~26mm

Package

Fumigation wooden case

Material

SUS304 Stainless steel

Electric parts: Omron, Delixi, M itsubishi, Delta

SKF/NSK Bearing

Feature

Unique structure design of orifice plate.

No reducer, high endurance ability.

With feed-in screw and  feed-out screw,

work independently

and each screw with two speeds.

Could process both frozen and fresh meat into particle size.

Easy to clean and maintain

Process inching to reverse running







 QQ20150804131612

QQ20150804131534



Our Services

1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides,
train your workers for the correct usage and daily maintenance.



2. Any spare parts you need will be sent to you directly from us.



3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sent
to your working site if you can not solve it under our guidance.

Welcome to contact us and we are at your service 24 hours.
call me 0086-15830671682
skype: hellosunny168





Company Information



Shijiazhuang Bossin Machinery Equipment Co.,Limited is located in high-tech industrial development zone of Shijiazhuang city, at where traffic is fairly convenient, and very near to the capital of China, Beijing city. It's a comprehensive corporation with the business.

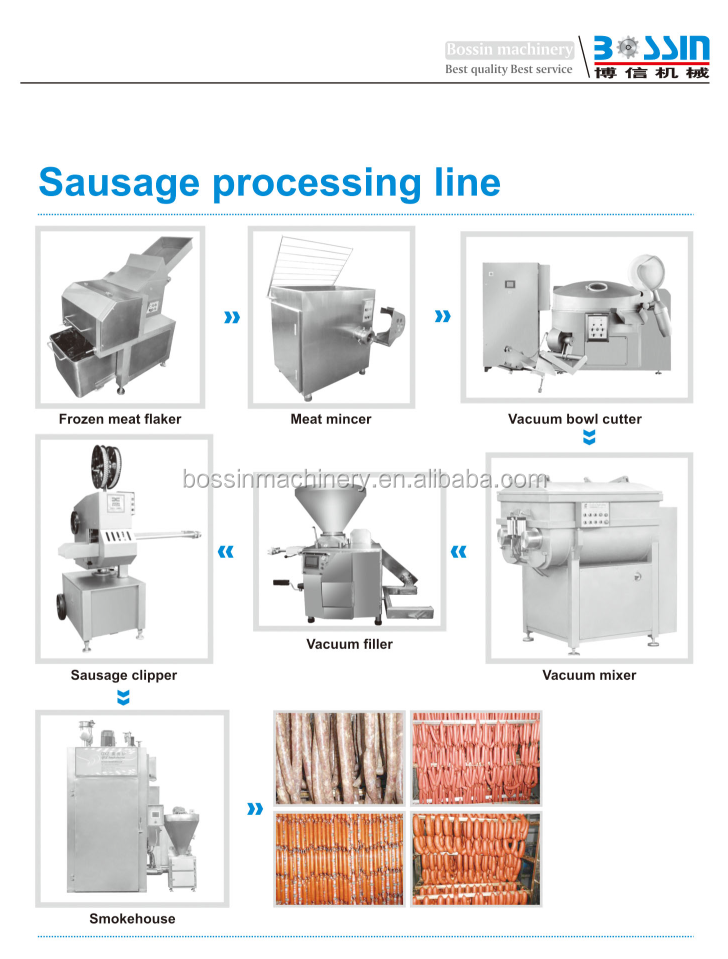

My factory is mainly manufacturing the Meat processing machinery, including all kinds of frozen meat flaker, meat mincer, meat mixer, meat bowl cutter, brine injector, vacuum meat tumbler, sausage stuffer/filler, sausage clipper, smokehouse, sausage cutter and Multi forming and coating machine in application of all kinds of fast food (hamburger, chicken nuggets, fish finger, onion ring...),also pasta machines. All of machines are based CE and ISO 9001 standard system. The products have been sold to overseas market such as Southeast Asia, Europe, Middle East and South America and we will go on to develop more markets through many ways. Our factory has abundant manufacturing and export experiences, so we will offer excellent quality of products and best service for all our clients sincerely.


9898989898



 QQ20150818114837



QQ20150818114832



Certificate

HTB1vTSaIFXXXXbFXXXX760XFXXXF



FAQ



1. Are you manufacturer?
Yes, we are professional manufacturer of meat machines with 11 years’ experience.



2.What about the product quality?
a) Each machine will be tested more than 24 hours totally.
b) Noise level tested 70~75db.
c)we use good 304 /316 Stainless steel
d) for the engine and electrci parts, we use imported brand.



3.What about the price?
We only offer the reasonable price instead of high price. Different quality and with different price.



4. Can you arrange the installation abroad?
Yes, we already exported to southeast, Germany, and Africa etc. And some of them installed by our technology team.



5. Can you accept special order?
Yes, we have R&D center with years’ experience for meat machine. Welcome to visit us. You will
get the best service and product.
We do believe our company will be best choice among the Chinese meat machinery company.
